STANDARD FEATURES
• 695cc 45 HP EFI 4 stroke engine
• On demand 4WD with 25 in. AT tires
• Passenger Backrest
• Front Rack
• Hand Guards
• Front Bumper
• LED Lights
• AND MORE!

DIMENSIONS

• VEHICLE SIZE (L X W X H): 89 IN X 48 IN X 50 IN
• WHEELBASE: 53 IN
• GROUND CLEARANCE: 9.8 IN
• TOWING CAPACITY: 1,200 LBS
• FUEL CAPACITY: 3.8 GALLONS
• SEAT HEIGHT: 38 IN
• DRY WEIGHT: 799 LBS

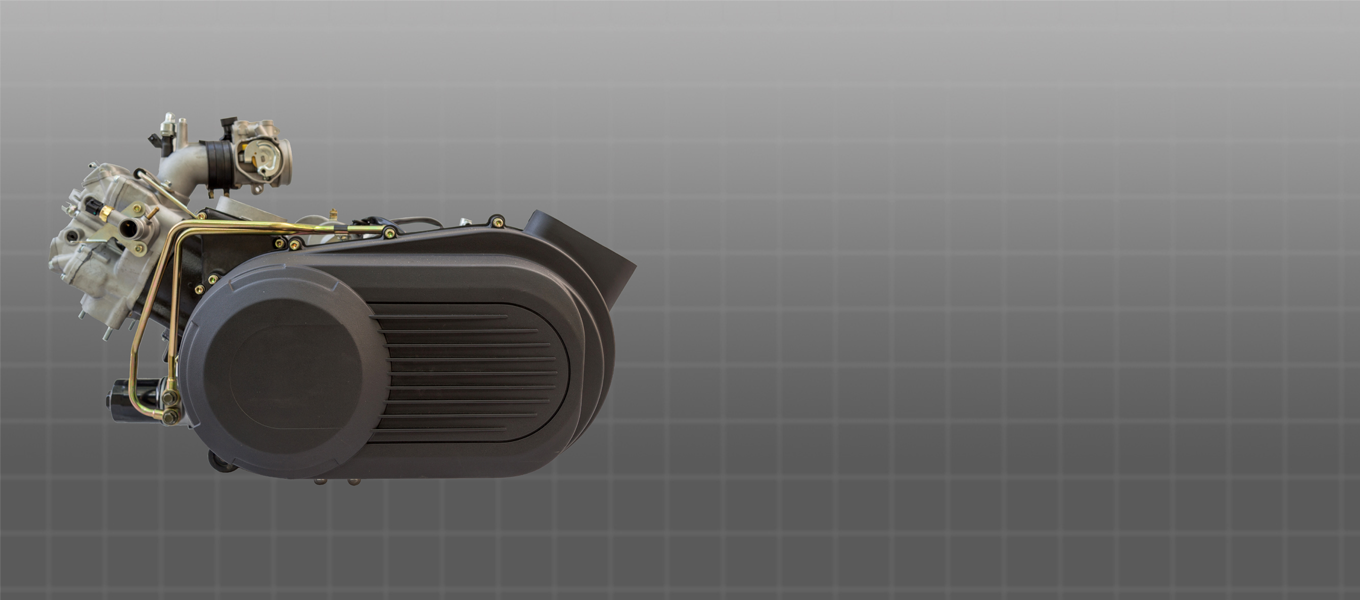

4 STROKE SINGLE CYLINDER

ENGINE TYPE: FOUR STROKE SINGLE CYLINDER SOHC
DISPLACEMENT: 695CC
HORSEPOWER: 45 HP
COOLING: LIQUID COOLED
TRANSMISSION/FINAL DRIVE: AUTOMATIC R/N/L/H, SHAFT DRIVE
DRIVE SYSTEM: ON DEMAND 2WD/4WD, LOCKING DIFFERENTIAL
FUEL SYSTEM:  ELECTRONIC FUEL INJECTION(EFI)

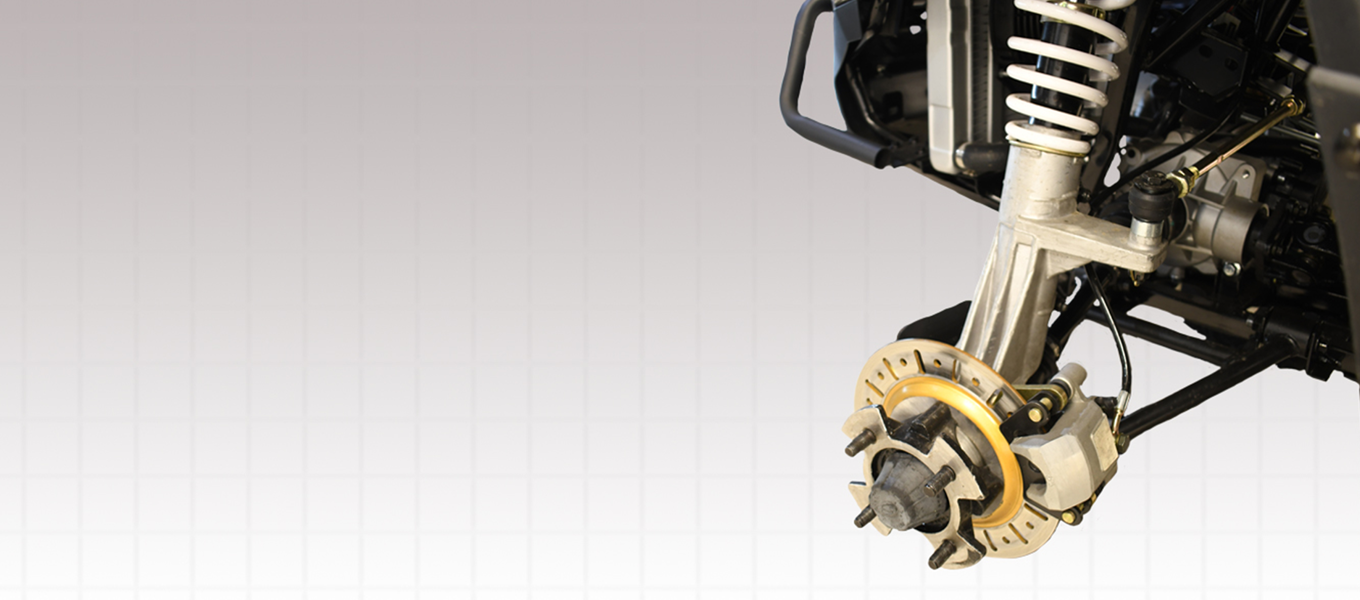

CHASSIS

• FRONT SUSPENSION: MACPHERSON INDEPENDENT
• REAR SUSPENSION: INDEPENDENT DUAL A-ARM
• FRONT TIRES: AT 25X 8-12
• REAR TIRES: AT 25X 10-12
• FRONT BRAKES: HYDRAULIC DISK BRAKES
• REAR BRAKES: HYDRAULIC DISK BRAKES

ADDITIONAL FEATURES

ASSEMBLED IN TEXAS, USA

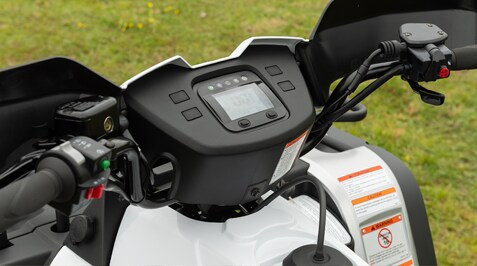

INSTRUMENTATION: DIGITAL DISPLAY, SPEEDOMETER,
ODOMETER, TACHOMETER, HOUR METER,
GEAR INDICATOR, 4WD INDICATOR,
DIFFERENTIAL LOCK INDICATOR,
DUAL TRIP METER,
HEADLIGHTS (HIGH/LOW),
TURN SIGNALS, FUEL GAUGE,
HI-TEMP, USB

*Prices Do Not Reflect Tax, Title Fees, or Shipping. Pictures Reflect what each model generally looks like but May Not be Exact.
